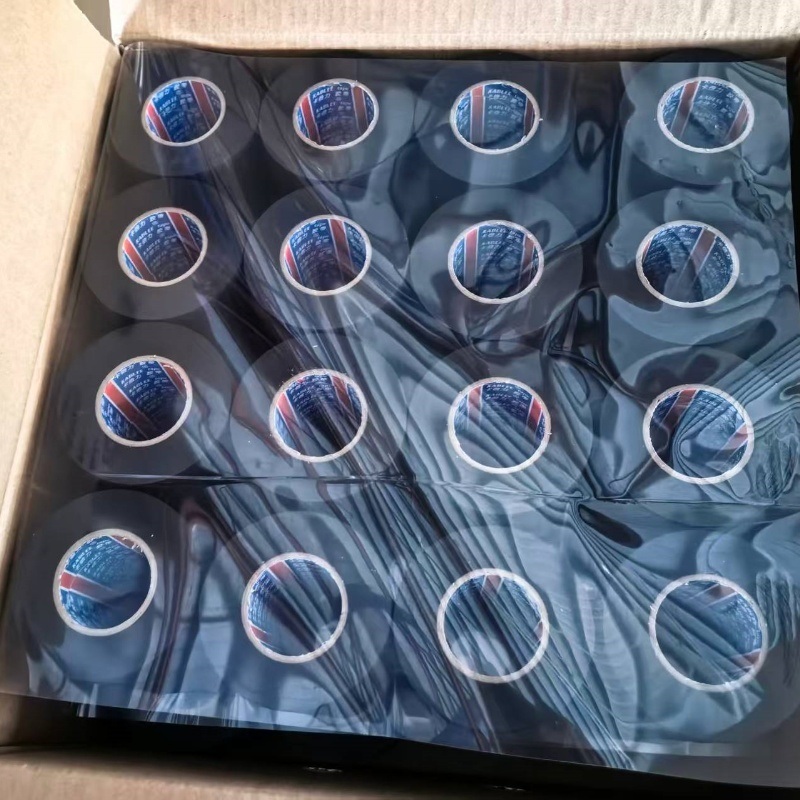

Kablee Automotive Wire Wrap Cloth Tape The Ultimate Solution for Wire Protection

Product Description:

Automotive cloth wire harness cloth tape deliver critical performance through specialized material formulations tailored to demanding vehicle environments. Key characteristics include:

1. ‌Material Versatility‌: Common substrates include PVC for cost-effective insulation (105°C rating), PET cloth for superior abrasion/high-temperature resistance (150°C), and nonwoven fleece for noise/vibration damping12. Eco-friendly halogen-free variants are increasingly prevalent

2. ‌Environmental Durability‌: Tapes must withstand wide temperature ranges (-40°C to 150°C), particularly near engines78. They resist moisture, UV degradation, automotive fluids (fuels, oils), and corrosive chemicals to ensure long-term integrity

3. ‌Mechanical & Electrical Performance‌: Essential properties encompass sufficient tensile strength (typically 15-30 N/10mm), elongation (150-300%), consistent adhesion (peel strength per ISO 29862), and controlled unwinding force710. Dielectric strength (>40 kV/mm) provides reliable electrical insulation

4. ‌Safety & Compliance‌: Flame retardancy meeting standards like UL 510 or VW60360 prevents fire propagation819. Low VOC/SVOC emissions and fogging resistance are mandated for cabin air quality. Abrasion resistance protects against wear from vibration and sharp edges

Features:

• Product Name: Automotive Cloth Wire Harness Cloth Tape
• Adhesion: 25 Oz/in
• Tensile Strength: 25 Lbs/in
• Color: Black
• Width: 9/19/25/32/38/50mm ±0.2
• Adhesive: Acrylates Copolymer
• Speciality: Engine wire harness wrap, Fabric wiring harness tape

Technical Parameters:

Applications:

Kablee T03 Automotive Cloth Wire Harness Tape is the perfect solution for automotive wiring harness taping and engine wire harness wrapping requirements. This wire wrap tape is made from high quality Acrylates Copolymer which offers excellent chemical resistance and adhesion of 25 Oz/in. The tape is available in black and can withstand temperatures ranging from -40°F to 105°F. This makes it suitable for automotive wiring harnesses and engine wire harnesses. The superior features and benefits of Kablee T03 Automotive Wire Wrap Tape makes it the ideal choice for auto wire harness wrap applications.

Support and Services:

Automotive Cloth Wire Harness Tape technical support and services include:

• Technical and installation advice
• Online product information and documentation
• Product maintenance and repair
• Replacement parts availability
• Onsite support
• Warranty claims
